Compile Command

Summary:

Detailed documentation for the bash-compiler compile command

Categories:

Documentation

Tags:

Created on: February 14, 2026

Last updated: February 14, 2026

1. What is it ?

1.1. Why ?

Before answering what this tool is, let’s begin by why this tool exists ?

Distributing scripts that rely on multiple sourced files is inconvenient, as users must unpack and run them from specific locations. To improve this, the goal is to create a single script file that embeds all necessary files. This approach ensures:

Easy distribution as a single file
Reliable copy-paste across systems and editors
Support for embedding binary (non-printable) files
Reusability of bash functions

To achieve this, the script must store other files’ contents in a way that avoids non-printable characters, which can cause issues during copy-paste or transmission over messaging programs.

1.2. what is a bash framework function ?

The so called bash framework functions are the functions defined in this framework that respects the following naming convention:

Namespace::Namespace::functionName
- we can have any number of namespaces
- each namespace is followed by ::
- namespace must begin by an uppercase letter [A-Z] followed by any of these characters [A-Za-z0-9_-].
- the function name is traditionally written using camelCase with first letter in small case
- function name authorized characters are [a-zA-Z0-9_-]+
the function source code using namespace convention will be searched under srcDirs provided to the compiler via –src-dir argument
- each namespace corresponds to a folder
- the filename of the function is the function name with .sh extension
- eg: Filters::camel2snakeCase source code can be found in src/Filters/camel2snakeCase.sh

1.3. what does this compiler tool do ?

This tool allows to detect all the framework functions used inside a given sh file. The framework functions matches the pattern Namespace::functionName (we can have several namespaces separated by the characters ::). These framework functions will be injected inside a compiled file. The process is recursive so that every framework functions used by imported framework functions will be imported as well (of course only once).

You can see several examples of compiled files by checking bash-tools-framework src/_binaries folder

2. The compile command

Description: This command inlines all the functions used in the script given in parameter

Usage:

bin/compile` [-h|--help] prints this help and exits

Usage:

bin/compile <fileToCompile>
            [--src-dir|-s <srcDir>]
            [--bin-dir|-b <binDir>] [--bin-file|-f <binFile>]
            [--root-dir|-r <rootDir>] [--src-path <srcPath>]
            [--template <templateName>] [--keep-temp-files|-k]

Mandatory Arguments:

<fileToCompile> the relative or absolute path to compile into one file

Options:

--help,-h prints this help and exits
--src-dir|-s <srcDir> provide the directory where to find the functions source code. By default this project src directory is used.
You can add as much –src-dir options as needed to define other source dirs.
The functions will be searched in the order defined (it allows function redefinition)
Example: --src-dir src --src-dir otherSrc
Functions::myFunction will be searched in
- src/Functions/myFunction.sh
- otherSrc/Functions/myFunction.sh
Important Note: if you provide a --src-dir and you need also functions defined in this project, think about adding a --src-dir for this project too.
--bin-dir|-b <binDir> allows to override the value of FRAMEWORK_BIN_DIR. By default FRAMEWORK_BIN_DIR is set to bin directory below the folder above bin/compile.
--bin-file|-f <binFile> BIN_FILE directive will be overridden by binFile value. See more information below about directives.
--template-dir|-t <templateDir> the template directory used to override some template includes. See more information below about environment variables.
--root-dir|-r <rootDir> if you wish to override FRAMEWORK_ROOT_DIR variable.
By default root directory is the folder above bin/compile.
--src-path <path> if you wish to override the filepath that will be displayed in the header to indicate the src filepath that has been compiled (SRC_FILE_PATH).
By default, it is initialized with path relative to FRAMEWORK_ROOT_DIR
--keep-temp-files|-k keep temporary files for debug purpose

Examples:

Let’s say you want to generate the binary file bin/shellcheckLint from the source file examples/configReference/shellcheckLint.yaml

bin/compile "$(pwd)/examples/configReference/shellcheckLint.yaml" --src-dir "$(pwd)/src" \
  --bin-dir "$(pwd)/bin" --root-dir "$(pwd)"

Here you want to generate the binary but overriding some or all functions of vendor/bash-tools-framework/src using src folder

bin/compile "$(pwd)/examples/configReference/shellcheckLint.yaml" --s "$(pwd)/src" \
  -s "$(pwd)/vendor/bash-tools-framework/src" --bin-dir "$(pwd)/bin" --root-dir "$(pwd)"

Here you want to override the default templates too

bin/compile "$(pwd)/examples/configReference/shellcheckLint.yaml" --s "$(pwd)/src" \
  -s "$(pwd)/vendor/bash-tools-framework/src" --bin-dir "$(pwd)/bin" \
  --root-dir "$(pwd)" --template-dir "$(pwd)/src/templates"

3. The compiler - How this compiler works ?

3.1. Template variables

Other variables are automatically generated to be used in your templates:

ORIGINAL_TEMPLATE_DIR allowing you to include the template relative to the script being interpreted
TEMPLATE_DIR the template directory in which you can override the templates defined in ORIGINAL_TEMPLATE_DIR

The following variables depends upon parameters passed to this script:

SRC_FILE_PATH the src file you want to show at the top of generated file to indicate from which source file the binary has been generated.
SRC_ABSOLUTE_PATH is the path of the file being compiled, it can be useful if you need to access a path relative to this file during compilation.

3.2. Compiler Algorithm

The command to generate a bash binary file:

./bin/bash-compiler examples/configReference/shellcheckLint.yaml \
  --root-dir /home/wsl/fchastanet/bash-dev-env/vendor/bash-tools-framework \
  --target-dir examples/generated \
  --keep-intermediate-files

This will trigger the following actions

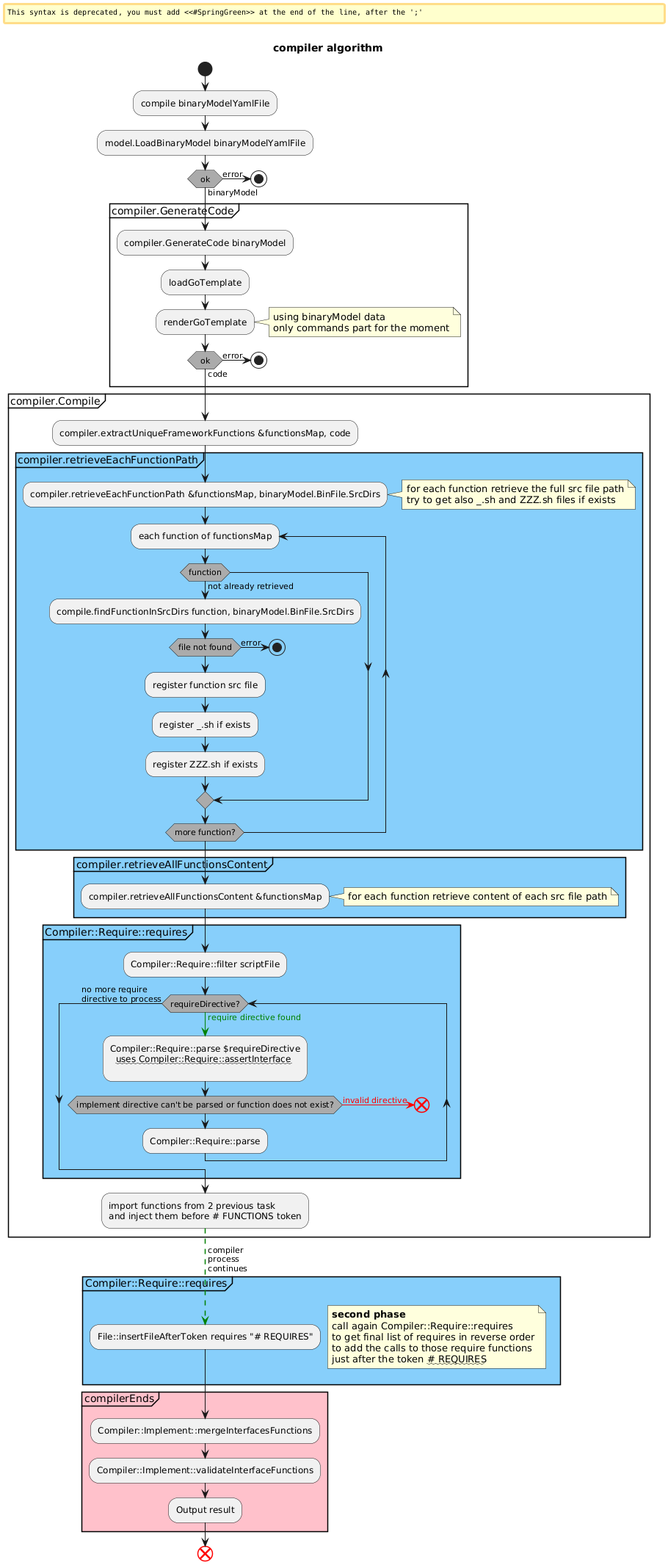

activity diagram to explain how compile command works

Source code: Activity diagram

@startuml "compiler"
title compiler algorithm
skinparam {
  ' https://github.com/plantuml/plantuml/blob/49115dfc7d4156961e5b49a81c09b474daa79823/src/net/sourceforge/plantuml/style/FromSkinparamToStyle.java#L145
  activityDiamondBackgroundColor #AAAAAA
  activityEndColor #red
}

start

:compile binaryModelYamlFile;

#SpringGreen:model.LoadBinaryModel binaryModelYamlFile;

if (ok) then (binaryModel)
else (error)
  stop
endif

partition "compiler.GenerateCode" {

  #SpringGreen:compiler.GenerateCode binaryModel;

  :loadGoTemplate;

  :renderGoTemplate;

  note right
    using binaryModel data
    only commands part for the moment
  endnote

  if (ok) then (code)
  else (error)
    stop
  endif
}

partition "compiler.Compile" {

  :compiler.extractUniqueFrameworkFunctions &functionsMap, code;

  partition "compiler.retrieveEachFunctionPath" #LightSkyBlue {
    :compiler.retrieveEachFunctionPath &functionsMap, binaryModel.BinFile.SrcDirs;
    note right
      for each function retrieve the full src file path
      try to get also _.sh and ZZZ.sh files if exists
    endnote
    repeat :each function of functionsMap;
      if (function) then (not already retrieved)
        :compile.findFunctionInSrcDirs function, binaryModel.BinFile.SrcDirs;
        if (file not found) then (error)
          stop
        endif
        :register function src file;
        :register _.sh if exists;
        :register ZZZ.sh if exists;
      endif
    repeat while (more function?)
  }

  partition "compiler.retrieveAllFunctionsContent" #LightSkyBlue {
    :compiler.retrieveAllFunctionsContent &functionsMap;
    note right
      for each function retrieve content of each src file path
    endnote
  }


  partition "Compiler::Require::requires" #LightSkyBlue {

    #SpringGreen:Compiler::Require::filter scriptFile;
    while (requireDirective?) is (<color:green>require directive found)
      -[#green]->
      #SpringGreen:Compiler::Require::parse $requireDirective
        ~~uses Compiler::Require::assertInterface~~
      ;
      if (implement directive can't be parsed or function does not exist?) is (<color:red>invalid directive) then
        -[#red]->
        end
      else
        -[#green]->
      endif
      -[#green]->
      :Compiler::Require::parse;
    endwhile (no more require\ndirective to process)
  }

  :import functions from 2 previous task
  and inject them before # FUNCTIONS token;
}

-[#green,dashed]-> compiler
process
continues
;

partition "Compiler::Require::requires" #LightSkyBlue {
  note right
  **second phase**
  call again Compiler::Require::requires
  to get final list of requires in reverse order
  to add the calls to those require functions
  just after the token ~~# REQUIRES~~
  endnote
  :File::insertFileAfterToken requires "# REQUIRES";
}

partition "compilerEnds" #pink {
  :Compiler::Implement::mergeInterfacesFunctions;
  :Compiler::Implement::validateInterfaceFunctions;
  :Output result;
}

end
@enduml

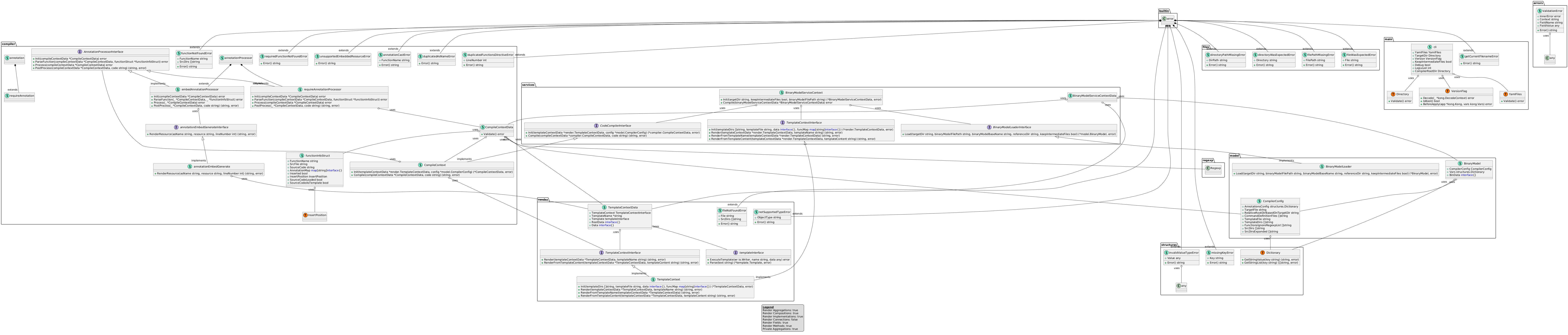

3.3. Class diagram

Source code: bash-compiler class diagram

@startuml
legend
<u><b>Legend</b></u>
Render Aggregations: true
Render Compositions: true
Render Implementations: true
Render Connections: false
Render Fields: true
Render Methods: true
Private Aggregations: true
end legend
namespace compiler {
    interface AnnotationProcessorInterface  {
        + Init(compileContextData *CompileContextData) error
        + ParseFunction(compileContextData *CompileContextData, functionStruct *functionInfoStruct) error
        + Process(compileContextData *CompileContextData) error
        + PostProcess(compileContextData *CompileContextData, code string) (string, error)

    }
    class CompileContext << (S,Aquamarine) >> {
        + Init(templateContextData *render.TemplateContextData, config *model.CompilerConfig) (*CompileContextData, error)
        + Compile(compileContextData *CompileContextData, code string) (string, error)

    }
    class CompileContextData << (S,Aquamarine) >> {
        + Validate() error

    }
    class annotation << (S,Aquamarine) >> {
    }
    class annotationCastError << (S,Aquamarine) >> {
        + FunctionName string

        + Error() string

    }
    class annotationEmbedGenerate << (S,Aquamarine) >> {
        + RenderResource(asName string, resource string, lineNumber int) (string, error)

    }
    interface annotationEmbedGenerateInterface  {
        + RenderResource(asName string, resource string, lineNumber int) (string, error)

    }
    class annotationProcessor << (S,Aquamarine) >> {
    }
    class compiler.InsertPosition << (T, #FF7700) >>  {
    }
    class duplicatedAsNameError << (S,Aquamarine) >> {
        + Error() string

    }
    class duplicatedFunctionsDirectiveError << (S,Aquamarine) >> {
        + LineNumber int

        + Error() string

    }
    class embedAnnotationProcessor << (S,Aquamarine) >> {
        + Init(compileContextData *CompileContextData) error
        + ParseFunction(_ *CompileContextData, _ *functionInfoStruct) error
        + Process(_ *CompileContextData) error
        + PostProcess(_ *CompileContextData, code string) (string, error)

    }
    class functionInfoStruct << (S,Aquamarine) >> {
        + FunctionName string
        + SrcFile string
        + SourceCode string
        + AnnotationMap <font color=blue>map</font>[string]<font color=blue>interface</font>{}
        + Inserted bool
        + InsertPosition InsertPosition
        + SourceCodeLoaded bool
        + SourceCodeAsTemplate bool

    }
    class functionNotFoundError << (S,Aquamarine) >> {
        + FunctionName string
        + SrcDirs []string

        + Error() string

    }
    class requireAnnotation << (S,Aquamarine) >> {
    }
    class requireAnnotationProcessor << (S,Aquamarine) >> {
        + Init(compileContextData *CompileContextData) error
        + ParseFunction(compileContextData *CompileContextData, functionStruct *functionInfoStruct) error
        + Process(compileContextData *CompileContextData) error
        + PostProcess(_ *CompileContextData, code string) (string, error)

    }
    class requiredFunctionNotFoundError << (S,Aquamarine) >> {
        + Error() string

    }
    class unsupportedEmbeddedResourceError << (S,Aquamarine) >> {
        + Error() string

    }
}
"__builtin__.error" *-- "extends""compiler.annotationCastError"
"__builtin__.error" *-- "extends""compiler.duplicatedAsNameError"
"__builtin__.error" *-- "extends""compiler.duplicatedFunctionsDirectiveError"
"compiler.annotationProcessor" *-- "extends""compiler.embedAnnotationProcessor"
"__builtin__.error" *-- "extends""compiler.functionNotFoundError"
"compiler.annotation" *-- "extends""compiler.requireAnnotation"
"compiler.annotationProcessor" *-- "extends""compiler.requireAnnotationProcessor"
"__builtin__.error" *-- "extends""compiler.requiredFunctionNotFoundError"
"__builtin__.error" *-- "extends""compiler.unsupportedEmbeddedResourceError"

"services.CodeCompilerInterface" <|-- "implements""compiler.CompileContext"
"compiler.annotationEmbedGenerateInterface" <|-- "implements""compiler.annotationEmbedGenerate"
"compiler.AnnotationProcessorInterface" <|-- "implements""compiler.embedAnnotationProcessor"
"compiler.AnnotationProcessorInterface" <|-- "implements""compiler.requireAnnotationProcessor"

"compiler.CompileContext""uses" o-- "compiler.AnnotationProcessorInterface"
"compiler.CompileContext""uses" o-- "render.TemplateContextInterface"
"compiler.CompileContextData""uses" o-- "compiler.CompileContext"
"compiler.CompileContextData""uses" o-- "compiler.functionInfoStruct"
"compiler.CompileContextData""uses" o-- "model.CompilerConfig"
"compiler.CompileContextData""uses" o-- "regexp.Regexp"
"compiler.CompileContextData""uses" o-- "render.TemplateContextData"
"compiler.annotationEmbedGenerate""uses" o-- "render.TemplateContextData"
"compiler.embedAnnotationProcessor""uses" o-- "compiler.annotationEmbedGenerateInterface"
"compiler.functionInfoStruct""uses" o-- "compiler.InsertPosition"
"compiler.requireAnnotationProcessor""uses" o-- "compiler.CompileContextData"

namespace errors {
    class ValidationError << (S,Aquamarine) >> {
        + InnerError error
        + Context string
        + FieldName string
        + FieldValue any

        + Error() string

    }
}


"errors.ValidationError""uses" o-- "errors.any"

namespace files {
    class directoryPathMissingError << (S,Aquamarine) >> {
        + DirPath string

        + Error() string

    }
    class directoryWasExpectedError << (S,Aquamarine) >> {
        + Directory string

        + Error() string

    }
    class filePathMissingError << (S,Aquamarine) >> {
        + FilePath string

        + Error() string

    }
    class fileWasExpectedError << (S,Aquamarine) >> {
        + File string

        + Error() string

    }
}
"__builtin__.error" *-- "extends""files.directoryPathMissingError"
"__builtin__.error" *-- "extends""files.directoryWasExpectedError"
"__builtin__.error" *-- "extends""files.filePathMissingError"
"__builtin__.error" *-- "extends""files.fileWasExpectedError"



namespace main {
    class Directory << (S,Aquamarine) >> {
        + Validate() error

    }
    class VersionFlag << (S,Aquamarine) >> {
        + Decode(_ *kong.DecodeContext) error
        + IsBool() bool
        + BeforeApply(app *kong.Kong, vars kong.Vars) error

    }
    class YamlFiles << (S,Aquamarine) >> {
        + Validate() error

    }
    class cli << (S,Aquamarine) >> {
        + YamlFiles YamlFiles
        + TargetDir Directory
        + Version VersionFlag
        + KeepIntermediateFiles bool
        + Debug bool
        + LogLevel int
        + CompilerRootDir Directory

    }
    class getCurrentFilenameError << (S,Aquamarine) >> {
        + Error() string

    }
    class main.Directory << (T, #FF7700) >>  {
    }
    class main.VersionFlag << (T, #FF7700) >>  {
    }
    class main.YamlFiles << (T, #FF7700) >>  {
    }
}
"__builtin__.error" *-- "extends""main.getCurrentFilenameError"


"main.cli""uses" o-- "main.Directory"
"main.cli""uses" o-- "main.VersionFlag"
"main.cli""uses" o-- "main.YamlFiles"

namespace model {
    class BinaryModel << (S,Aquamarine) >> {
        + CompilerConfig CompilerConfig
        + Vars structures.Dictionary
        + BinData <font color=blue>interface</font>{}

    }
    class BinaryModelLoader << (S,Aquamarine) >> {
        + Load(targetDir string, binaryModelFilePath string, binaryModelBaseName string, referenceDir string, keepIntermediateFiles bool) (*BinaryModel, error)

    }
    class CompilerConfig << (S,Aquamarine) >> {
        + AnnotationsConfig structures.Dictionary
        + TargetFile string
        + RelativeRootDirBasedOnTargetDir string
        + CommandDefinitionFiles []string
        + TemplateFile string
        + TemplateDirs []string
        + FunctionsIgnoreRegexpList []string
        + SrcDirs []string
        + SrcDirsExpanded []string

    }
}

"services.BinaryModelLoaderInterface" <|-- "implements""model.BinaryModelLoader"

"model.BinaryModel""uses" o-- "model.CompilerConfig"
"model.BinaryModel""uses" o-- "structures.Dictionary"
"model.CompilerConfig""uses" o-- "structures.Dictionary"

namespace render {
    class TemplateContext << (S,Aquamarine) >> {
        + Init(templateDirs []string, templateFile string, data <font color=blue>interface</font>{}, funcMap <font color=blue>map</font>[string]<font color=blue>interface</font>{}) (*TemplateContextData, error)
        + Render(templateContextData *TemplateContextData, templateName string) (string, error)
        + RenderFromTemplateName(templateContextData *TemplateContextData) (string, error)
        + RenderFromTemplateContent(templateContextData *TemplateContextData, templateContent string) (string, error)

    }
    class TemplateContextData << (S,Aquamarine) >> {
        + TemplateContext TemplateContextInterface
        + TemplateName *string
        + Template templateInterface
        + RootData <font color=blue>interface</font>{}
        + Data <font color=blue>interface</font>{}

    }
    interface TemplateContextInterface  {
        + Render(templateContextData *TemplateContextData, templateName string) (string, error)
        + RenderFromTemplateContent(templateContextData *TemplateContextData, templateContent string) (string, error)

    }
    class fileNotFoundError << (S,Aquamarine) >> {
        + File string
        + SrcDirs []string

        + Error() string

    }
    class notSupportedTypeError << (S,Aquamarine) >> {
        + ObjectType string

        + Error() string

    }
    interface templateInterface  {
        + ExecuteTemplate(wr io.Writer, name string, data any) error
        + Parse(text string) (*template.Template, error)

    }
}
"__builtin__.error" *-- "extends""render.fileNotFoundError"
"__builtin__.error" *-- "extends""render.notSupportedTypeError"

"render.TemplateContextInterface" <|-- "implements""render.TemplateContext"
"services.TemplateContextInterface" <|-- "implements""render.TemplateContext"

"render.TemplateContextData""uses" o-- "render.TemplateContextInterface"
"render.TemplateContextData""uses" o-- "render.templateInterface"

namespace services {
    interface BinaryModelLoaderInterface  {
        + Load(targetDir string, binaryModelFilePath string, binaryModelBaseName string, referenceDir string, keepIntermediateFiles bool) (*model.BinaryModel, error)

    }
    class BinaryModelServiceContext << (S,Aquamarine) >> {
        + Init(targetDir string, keepIntermediateFiles bool, binaryModelFilePath string) (*BinaryModelServiceContextData, error)
        + Compile(binaryModelServiceContextData *BinaryModelServiceContextData) error

    }
    class BinaryModelServiceContextData << (S,Aquamarine) >> {
    }
    interface CodeCompilerInterface  {
        + Init(templateContextData *render.TemplateContextData, config *model.CompilerConfig) (*compiler.CompileContextData, error)
        + Compile(compileContextData *compiler.CompileContextData, code string) (string, error)

    }
    interface TemplateContextInterface  {
        + Init(templateDirs []string, templateFile string, data <font color=blue>interface</font>{}, funcMap <font color=blue>map</font>[string]<font color=blue>interface</font>{}) (*render.TemplateContextData, error)
        + Render(templateContextData *render.TemplateContextData, templateName string) (string, error)
        + RenderFromTemplateName(templateContextData *render.TemplateContextData) (string, error)
        + RenderFromTemplateContent(templateContextData *render.TemplateContextData, templateContent string) (string, error)

    }
}


"services.BinaryModelServiceContext""uses" o-- "services.BinaryModelLoaderInterface"
"services.BinaryModelServiceContext""uses" o-- "services.CodeCompilerInterface"
"services.BinaryModelServiceContext""uses" o-- "services.TemplateContextInterface"
"services.BinaryModelServiceContextData""uses" o-- "compiler.CompileContextData"
"services.BinaryModelServiceContextData""uses" o-- "model.BinaryModel"
"services.BinaryModelServiceContextData""uses" o-- "render.TemplateContextData"

namespace structures {
    class Dictionary << (S,Aquamarine) >> {
        + GetStringValue(key string) (string, error)
        + GetStringList(key string) ([]string, error)

    }
    class invalidValueTypeError << (S,Aquamarine) >> {
        + Value any

        + Error() string

    }
    class missingKeyError << (S,Aquamarine) >> {
        + Key string

        + Error() string

    }
    class structures.Dictionary << (T, #FF7700) >>  {
    }
}
"__builtin__.error" *-- "extends""structures.invalidValueTypeError"
"__builtin__.error" *-- "extends""structures.missingKeyError"


"structures.invalidValueTypeError""uses" o-- "structures.any"

@enduml

Source code: bash-compiler class diagram with private methods

@startuml
legend
<u><b>Legend</b></u>
Render Aggregations: true
Render Fields: true
Render Methods: true
Private Aggregations: true
end legend
namespace compiler {
    interface AnnotationProcessorInterface  {
        + Init(compileContextData *CompileContextData) error
        + ParseFunction(compileContextData *CompileContextData, functionStruct *functionInfoStruct) error
        + Process(compileContextData *CompileContextData) error
        + PostProcess(compileContextData *CompileContextData, code string) (string, error)

    }
    class CompileContext << (S,Aquamarine) >> {
        - templateContext render.TemplateContextInterface
        - annotationProcessors []AnnotationProcessorInterface

        - generateCode(compileContextData *CompileContextData, code string) (bool, string, error)
        - functionsAnalysis(compileContextData *CompileContextData, code string) error
        - renderEachFunctionAsTemplate(compileContextData *CompileContextData) error
        - isNonFrameworkFunction(compileContextData *CompileContextData, functionName string) bool
        - nonFrameworkFunctionRegexpCompile(compileContextData *CompileContextData)
        - generateFunctionCode(compileContextData *CompileContextData) (string, error)
        - insertFunctionsCode(compileContextData *CompileContextData, functionNames []string, buffer *bytes.Buffer, insertPosition InsertPosition) error
        - retrieveAllFunctionsContent(compileContextData *CompileContextData) (bool, error)
        - retrieveEachFunctionPath(compileContextData *CompileContextData) (bool, error)
        - extractUniqueFrameworkFunctions(compileContextData *CompileContextData, code string) bool
        - findFileInSrcDirs(compileContextData *CompileContextData, relativeFilePath string) (string, bool)

        + Init(templateContextData *render.TemplateContextData, config *model.CompilerConfig) (*CompileContextData, error)
        + Compile(compileContextData *CompileContextData, code string) (string, error)

    }
    class CompileContextData << (S,Aquamarine) >> {
        - compileContext *CompileContext
        - templateContextData *render.TemplateContextData
        - config *model.CompilerConfig
        - functionsMap <font color=blue>map</font>[string]functionInfoStruct
        - ignoreFunctionsRegexp []*regexp.Regexp

        + Validate() error

    }
    class annotation << (S,Aquamarine) >> {
    }
    class annotationCastError << (S,Aquamarine) >> {
        + FunctionName string

        + Error() string

    }
    class annotationEmbedGenerate << (S,Aquamarine) >> {
        - embedDirTemplateName string
        - embedFileTemplateName string
        - templateContextData *render.TemplateContextData

        - renderFile(asName string, resource string, fileMode os.FileMode) (string, error)
        - renderDir(asName string, resource string) (string, error)
        - renderTemplate(data <font color=blue>map</font>[string]string, templateName string) (string, error)

        + RenderResource(asName string, resource string, lineNumber int) (string, error)

    }
    interface annotationEmbedGenerateInterface  {
        + RenderResource(asName string, resource string, lineNumber int) (string, error)

    }
    class annotationProcessor << (S,Aquamarine) >> {
    }
    class compiler.InsertPosition << (T, #FF7700) >>  {
    }
    class duplicatedAsNameError << (S,Aquamarine) >> {
        - lineNumber int
        - asName string
        - resource string

        + Error() string

    }
    class duplicatedFunctionsDirectiveError << (S,Aquamarine) >> {
        + LineNumber int

        + Error() string

    }
    class embedAnnotationProcessor << (S,Aquamarine) >> {
        - annotationEmbedGenerate annotationEmbedGenerateInterface
        - embedMap <font color=blue>map</font>[string]string

        + Init(compileContextData *CompileContextData) error
        + ParseFunction(_ *CompileContextData, _ *functionInfoStruct) error
        + Process(_ *CompileContextData) error
        + PostProcess(_ *CompileContextData, code string) (string, error)

    }
    class functionInfoStruct << (S,Aquamarine) >> {
        + FunctionName string
        + SrcFile string
        + SourceCode string
        + AnnotationMap <font color=blue>map</font>[string]<font color=blue>interface</font>{}
        + Inserted bool
        + InsertPosition InsertPosition
        + SourceCodeLoaded bool
        + SourceCodeAsTemplate bool

        - getRequireAnnotation() (*requireAnnotation, error)

    }
    class functionNotFoundError << (S,Aquamarine) >> {
        + FunctionName string
        + SrcDirs []string

        + Error() string

    }
    class requireAnnotation << (S,Aquamarine) >> {
        - requiredFunctions []string
        - isRequired bool
        - checkRequirementsCodeAdded bool
        - codeAddedOnRequiredFunctions bool

    }
    class requireAnnotationProcessor << (S,Aquamarine) >> {
        - compileContextData *CompileContextData
        - checkRequirementsTemplateName string
        - requireTemplateName string

        - addRequireCodeToEachRequiredFunctions(compileContextData *CompileContextData, functionStruct *functionInfoStruct) error
        - addRequireCode(compileContextData *CompileContextData, functionStruct *functionInfoStruct) error

        + Init(compileContextData *CompileContextData) error
        + ParseFunction(compileContextData *CompileContextData, functionStruct *functionInfoStruct) error
        + Process(compileContextData *CompileContextData) error
        + PostProcess(_ *CompileContextData, code string) (string, error)

    }
    class requiredFunctionNotFoundError << (S,Aquamarine) >> {
        - functionName string

        + Error() string

    }
    class unsupportedEmbeddedResourceError << (S,Aquamarine) >> {
        - asName string
        - resource string
        - lineNumber int

        + Error() string

    }
}
"__builtin__.error" *-- "extends""compiler.annotationCastError"
"__builtin__.error" *-- "extends""compiler.duplicatedAsNameError"
"__builtin__.error" *-- "extends""compiler.duplicatedFunctionsDirectiveError"
"compiler.annotationProcessor" *-- "extends""compiler.embedAnnotationProcessor"
"__builtin__.error" *-- "extends""compiler.functionNotFoundError"
"compiler.annotation" *-- "extends""compiler.requireAnnotation"
"compiler.annotationProcessor" *-- "extends""compiler.requireAnnotationProcessor"
"__builtin__.error" *-- "extends""compiler.requiredFunctionNotFoundError"
"__builtin__.error" *-- "extends""compiler.unsupportedEmbeddedResourceError"

"services.CodeCompilerInterface" <|-- "implements""compiler.CompileContext"
"compiler.annotationEmbedGenerateInterface" <|-- "implements""compiler.annotationEmbedGenerate"
"compiler.AnnotationProcessorInterface" <|-- "implements""compiler.embedAnnotationProcessor"
"compiler.AnnotationProcessorInterface" <|-- "implements""compiler.requireAnnotationProcessor"

"compiler.CompileContext""uses" o-- "compiler.AnnotationProcessorInterface"
"compiler.CompileContext""uses" o-- "render.TemplateContextInterface"
"compiler.CompileContextData""uses" o-- "compiler.CompileContext"
"compiler.CompileContextData""uses" o-- "compiler.functionInfoStruct"
"compiler.CompileContextData""uses" o-- "model.CompilerConfig"
"compiler.CompileContextData""uses" o-- "regexp.Regexp"
"compiler.CompileContextData""uses" o-- "render.TemplateContextData"
"compiler.annotationEmbedGenerate""uses" o-- "render.TemplateContextData"
"compiler.embedAnnotationProcessor""uses" o-- "compiler.annotationEmbedGenerateInterface"
"compiler.functionInfoStruct""uses" o-- "compiler.InsertPosition"
"compiler.requireAnnotationProcessor""uses" o-- "compiler.CompileContextData"

namespace errors {
    class ValidationError << (S,Aquamarine) >> {
        + InnerError error
        + Context string
        + FieldName string
        + FieldValue any

        + Error() string

    }
}


"errors.ValidationError""uses" o-- "errors.any"

namespace files {
    class directoryPathMissingError << (S,Aquamarine) >> {
        + DirPath string

        + Error() string

    }
    class directoryWasExpectedError << (S,Aquamarine) >> {
        + Directory string

        + Error() string

    }
    class filePathMissingError << (S,Aquamarine) >> {
        + FilePath string

        + Error() string

    }
    class fileWasExpectedError << (S,Aquamarine) >> {
        + File string

        + Error() string

    }
}
"__builtin__.error" *-- "extends""files.directoryPathMissingError"
"__builtin__.error" *-- "extends""files.directoryWasExpectedError"
"__builtin__.error" *-- "extends""files.filePathMissingError"
"__builtin__.error" *-- "extends""files.fileWasExpectedError"



namespace main {
    class Directory << (S,Aquamarine) >> {
        + Validate() error

    }
    class VersionFlag << (S,Aquamarine) >> {
        + Decode(_ *kong.DecodeContext) error
        + IsBool() bool
        + BeforeApply(app *kong.Kong, vars kong.Vars) error

    }
    class YamlFiles << (S,Aquamarine) >> {
        + Validate() error

    }
    class cli << (S,Aquamarine) >> {
        + YamlFiles YamlFiles
        + TargetDir Directory
        + Version VersionFlag
        + KeepIntermediateFiles bool
        + Debug bool
        + LogLevel int
        + CompilerRootDir Directory

    }
    class getCurrentFilenameError << (S,Aquamarine) >> {
        + Error() string

    }
    class main.Directory << (T, #FF7700) >>  {
    }
    class main.VersionFlag << (T, #FF7700) >>  {
    }
    class main.YamlFiles << (T, #FF7700) >>  {
    }
}
"__builtin__.error" *-- "extends""main.getCurrentFilenameError"


"main.cli""uses" o-- "main.Directory"
"main.cli""uses" o-- "main.VersionFlag"
"main.cli""uses" o-- "main.YamlFiles"

namespace model {
    class BinaryModel << (S,Aquamarine) >> {
        + CompilerConfig CompilerConfig
        + Vars structures.Dictionary
        + BinData <font color=blue>interface</font>{}

    }
    class BinaryModelLoader << (S,Aquamarine) >> {
        - setEnvVars(binaryModel *BinaryModel)
        - expandVars(binaryModel *BinaryModel)

        + Load(targetDir string, binaryModelFilePath string, binaryModelBaseName string, referenceDir string, keepIntermediateFiles bool) (*BinaryModel, error)

    }
    class CompilerConfig << (S,Aquamarine) >> {
        + AnnotationsConfig structures.Dictionary
        + TargetFile string
        + RelativeRootDirBasedOnTargetDir string
        + CommandDefinitionFiles []string
        + TemplateFile string
        + TemplateDirs []string
        + FunctionsIgnoreRegexpList []string
        + SrcDirs []string
        + SrcDirsExpanded []string

    }
}

"services.BinaryModelLoaderInterface" <|-- "implements""model.BinaryModelLoader"

"model.BinaryModel""uses" o-- "model.CompilerConfig"
"model.BinaryModel""uses" o-- "structures.Dictionary"
"model.CompilerConfig""uses" o-- "structures.Dictionary"

namespace render {
    class TemplateContext << (S,Aquamarine) >> {
        + Init(templateDirs []string, templateFile string, data <font color=blue>interface</font>{}, funcMap <font color=blue>map</font>[string]<font color=blue>interface</font>{}) (*TemplateContextData, error)
        + Render(templateContextData *TemplateContextData, templateName string) (string, error)
        + RenderFromTemplateName(templateContextData *TemplateContextData) (string, error)
        + RenderFromTemplateContent(templateContextData *TemplateContextData, templateContent string) (string, error)

    }
    class TemplateContextData << (S,Aquamarine) >> {
        + TemplateContext TemplateContextInterface
        + TemplateName *string
        + Template templateInterface
        + RootData <font color=blue>interface</font>{}
        + Data <font color=blue>interface</font>{}

    }
    interface TemplateContextInterface  {
        + Render(templateContextData *TemplateContextData, templateName string) (string, error)
        + RenderFromTemplateContent(templateContextData *TemplateContextData, templateContent string) (string, error)

    }
    class fileNotFoundError << (S,Aquamarine) >> {
        + File string
        + SrcDirs []string

        + Error() string

    }
    class notSupportedTypeError << (S,Aquamarine) >> {
        + ObjectType string

        + Error() string

    }
    interface templateInterface  {
        + ExecuteTemplate(wr io.Writer, name string, data any) error
        + Parse(text string) (*template.Template, error)

    }
}
"__builtin__.error" *-- "extends""render.fileNotFoundError"
"__builtin__.error" *-- "extends""render.notSupportedTypeError"

"render.TemplateContextInterface" <|-- "implements""render.TemplateContext"
"services.TemplateContextInterface" <|-- "implements""render.TemplateContext"

"render.TemplateContextData""uses" o-- "render.TemplateContextInterface"
"render.TemplateContextData""uses" o-- "render.templateInterface"

namespace services {
    interface BinaryModelLoaderInterface  {
        + Load(targetDir string, binaryModelFilePath string, binaryModelBaseName string, referenceDir string, keepIntermediateFiles bool) (*model.BinaryModel, error)

    }
    class BinaryModelServiceContext << (S,Aquamarine) >> {
        - binaryModelLoader BinaryModelLoaderInterface
        - templateContext TemplateContextInterface
        - codeCompiler CodeCompilerInterface

        - renderBinaryCodeFromTemplate(binaryModelServiceContextData *BinaryModelServiceContextData) (string, error)
        - renderCode(binaryModelServiceContextData *BinaryModelServiceContextData) (string, error)

        + Init(targetDir string, keepIntermediateFiles bool, binaryModelFilePath string) (*BinaryModelServiceContextData, error)
        + Compile(binaryModelServiceContextData *BinaryModelServiceContextData) error

    }
    class BinaryModelServiceContextData << (S,Aquamarine) >> {
        - binaryModelData *model.BinaryModel
        - compileContextData *compiler.CompileContextData
        - templateContextData *render.TemplateContextData
        - targetDir string
        - keepIntermediateFiles bool
        - binaryModelFilePath string
        - binaryModelBaseName string

    }
    interface CodeCompilerInterface  {
        + Init(templateContextData *render.TemplateContextData, config *model.CompilerConfig) (*compiler.CompileContextData, error)
        + Compile(compileContextData *compiler.CompileContextData, code string) (string, error)

    }
    interface TemplateContextInterface  {
        + Init(templateDirs []string, templateFile string, data <font color=blue>interface</font>{}, funcMap <font color=blue>map</font>[string]<font color=blue>interface</font>{}) (*render.TemplateContextData, error)
        + Render(templateContextData *render.TemplateContextData, templateName string) (string, error)
        + RenderFromTemplateName(templateContextData *render.TemplateContextData) (string, error)
        + RenderFromTemplateContent(templateContextData *render.TemplateContextData, templateContent string) (string, error)

    }
}


"services.BinaryModelServiceContext""uses" o-- "services.BinaryModelLoaderInterface"
"services.BinaryModelServiceContext""uses" o-- "services.CodeCompilerInterface"
"services.BinaryModelServiceContext""uses" o-- "services.TemplateContextInterface"
"services.BinaryModelServiceContextData""uses" o-- "compiler.CompileContextData"
"services.BinaryModelServiceContextData""uses" o-- "model.BinaryModel"
"services.BinaryModelServiceContextData""uses" o-- "render.TemplateContextData"

namespace structures {
    class Dictionary << (S,Aquamarine) >> {
        + GetStringValue(key string) (string, error)
        + GetStringList(key string) ([]string, error)

    }
    class invalidValueTypeError << (S,Aquamarine) >> {
        + Value any

        + Error() string

    }
    class missingKeyError << (S,Aquamarine) >> {
        + Key string

        + Error() string

    }
    class structures.Dictionary << (T, #FF7700) >>  {
    }
}
"__builtin__.error" *-- "extends""structures.invalidValueTypeError"
"__builtin__.error" *-- "extends""structures.missingKeyError"


"structures.invalidValueTypeError""uses" o-- "structures.any"

"__builtin__.[]string" #.. "alias of""main.YamlFiles"
"__builtin__.int8" #.. "alias of""compiler.InsertPosition"
"__builtin__.string" #.. "alias of""main.Directory"
"__builtin__.string" #.. "alias of""main.VersionFlag"
"structures.<font color=blue>map</font>[string]<font color=blue>interface</font>{}" #.. "alias of""structures.Dictionary"
@enduml

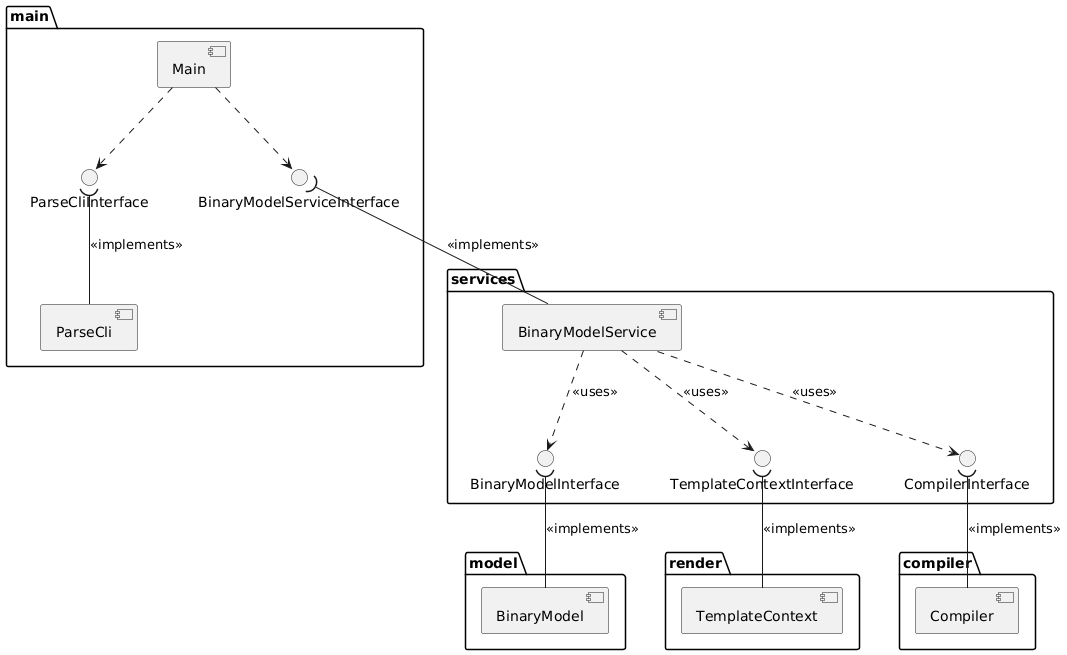

3.4. Dependency diagram

Source code: bash-compiler dependency diagram

@startuml

'!pragma layout elk

package main {
  [Main] ..> ParseCliInterface
  [Main] ..> BinaryModelServiceInterface
  ParseCliInterface )-- [ParseCli]  : <<implements>>
}

package services {
  BinaryModelServiceInterface )-- [BinaryModelService] : <<implements>>
  [BinaryModelService] ..> BinaryModelInterface : <<uses>>
  [BinaryModelService] ..> TemplateContextInterface : <<uses>>
  [BinaryModelService] ..> CompilerInterface : <<uses>>
}

package model {
  BinaryModelInterface )-- [BinaryModel] : <<implements>>
}

package render {
  TemplateContextInterface )-- [TemplateContext] : <<implements>>
}

package compiler {
  CompilerInterface )-- [Compiler] : <<implements>>
}

@enduml

3.5. directives and template

You can use special optional directives in src file

# FUNCTIONS mandatory directive
@embed directive
@require directive

Compile command allows to generate a binary file using some directives directly inside the src file.

Eg:

#!/usr/bin/env bash
# BIN_FILE=${FRAMEWORK_ROOT_DIR}/bin/binaryExample
# @embed "Backup::file" as backupFile
# @embed "${FRAMEWORK_ROOT_DIR}/bin/otherNeededBinary" AS "otherNeededBinary"
# FACADE

sudo "${embed_file_backupFile}" # ...
"${embed_file_otherNeededBinary}"
# ...

The above file header allows to generate the bin/binaryExample binary file. It uses @embed directive to allow the usage of Backup::file function as a binary, named backupFile that can even be called using sudo.

In previous example, the directive # FUNCTIONS is injected via the file cmd/bash-compiler/defaultTemplates/binFile.gtpl.

The srcFile should contains at least the directive BIN_FILE at top of the bash script file (see example above).

3.5.1. FUNCTIONS directive

It is the most important directive as it will inform the compiler where dependent framework functions will be injected in your resulting bash file.

3.5.2. Compiler - Compiler::Requirement::require

The compiler during successive passes:

use existing compiler passes (injectImportedFunctions)
- will parse # @require directives of each newly injected functions
  - error if require name does not begin with require
  - error if require name does not comply naming convention
  - error if require* file not found
- will ignore the disabled requirements
- a tree of require dependencies will be computed
- we inject gradually the framework functions linked to the requires functions
At the end of compiler processing
- inject the requirements calls in the order specified by dependency tree (see below).

3.5.2.1. Requires dependencies tree

The following rules apply:

Some requirements can depends on each others, the compiler will compute which dependency should be loaded before the other. Eg: Log::requireLoad requirement depends on Framework::requireRootDir, so Framework::requireRootDir is loaded before. But Log requirement depends also on Env::requireLoad requirement.
Requirement can be set at namespace level by adding the directive in _.sh file or at function level.
A requirement can be loaded only once.
A requirement that is used by several functions will be more prioritized and will be loaded before a less prioritized requirement.
# FUNCTIONS placeholder should be defined before # REQUIREMENTS placeholder
# REQUIREMENTS placeholder should be defined before # ENTRYPOINT placeholder

3.5.2.2. Require example

The annotation @require added to a function like in this example:

# @require Env::requireLoad
# @require Log::requireLoad
Log::logMessage() {
  # rest of the function content
}

will do the following actions:

compiler checks that the required functions exist, if not an error is triggered.
compiler adds code to the required function that will set an environment variable to 1 when the function is called (eg: REQUIRE_FUNCTION_ENV_REQUIRE_LOAD_LOADED=1).
compiler adds code to the function that has these requirements in to check if these environment variables are set and exit 1 if not.
compiler checks if the function is called at least once but it is the developer’s responsibility to call the require function at the right place.

Code is generated using go templates. The go templates are configured in the yaml file at compiler config level.

compilerConfig:
  annotationsConfig:
    requireTemplate: require
    checkRequirementsTemplate: checkRequirements
# rest of the config file content

examples/templates/annotations/require.gtpl => generates this code:

Env::RequireLoad() {
  REQUIRE_FUNCTION_ENV_REQUIRE_LOAD_LOADED=1
  # rest of the function content
}

examples/templates/annotations/checkRequirements.gtpl => generates this code:

# @require Env::requireLoad
# @require Log::requireLoad
Log::logMessage() {
  if [[ "${REQUIRE_FUNCTION_ENV_REQUIRE_LOAD_LOADED:-0}" != 1 ]]; then
    echo >&2 "Requirement Env::requireLoad has not been loaded"
    exit 1
  fi

  if [[ "${REQUIRE_FUNCTION_LOG_REQUIRE_LOAD_LOADED:-0}" != 1 ]]; then
    echo >&2 "Requirement Log::requireLoad has not been loaded"
    exit 1
  fi
  # rest of the function content
}

The aims of a require are the following:

be to be able to test for a requirement just before executing a function that is marked with @require
when compiling be able to know if a function with a specific requirement has been used (eg: ubuntu>20)
There are several kind of requirements:
- checking that a command is available
  - this requirement needs to be called at the proper level if the binary actually installs this command.
  - @require Aws::requireAwsCommand
  - @require Docker::requireDockerCommand
  - @require Git::requireGitCommand
  - @require Linux::requireCurlCommand
  - @require Linux::requireJqCommand
  - @require Linux::requireRealpathCommand
  - @require Linux::requirePathchkCommand
  - @require Linux::requireSudoCommand
  - @require Linux::requireTarCommand
  - @require Ssh::requireSshKeygenCommand
  - @require Ssh::requireSshKeyscanCommand
- checking a feature is available
  - @require Git::requireShallowClone actually based on git version
- checking a specific environment/state is available on execution
  - @require Linux::requireUbuntu
  - @require Linux::Wsl::requireWsl
  - @require Linux::requireExecutedAsUser
  - ubuntu>20
- ensuring some specific loading are made
  - @require Env::requireLoad
  - @require Log::requireLoad
  - @require UI::requireTheme

3.5.2.3. Requires dependencies use cases

Script file example:

# FUNCTIONS placeholder
# REQUIRES placeholder
Linux::Apt::update || Log::displayError "impossible to update"

first compiler injectImportedFunctions pass
- Linux::Apt::update requires
  - Linux::requireSudoCommand
  - Linux::requireUbuntu
- Log::display* requires Colors::requireTheme
second compiler injectImportedFunctions pass
- Log::log* requires Log::requireLoad
third compiler injectImportedFunctions pass
- Log::requireLoad requires Env::requireLoad
fourth compiler injectImportedFunctions pass
- Env::requireLoad requires
  - Framework::requireRootDir
  - Framework::tmpFileManagement (see src/_includes/_commonHeader.sh)
fifth compiler injectImportedFunctions pass
- Framework::tmpFileManagement requires
  - Framework::requireRootDir which is already in the required list

If we order the requirements following reversed pass order, we end up with:

Framework::tmpFileManagement
Framework::requireRootDir
- here we have an issue as it should come before Framework::tmpFileManagement
- a solution could be to add the element to require list even if it is already in the list. This way it could even give a weight at certain requires.
Env::requireLoad
Log::requireLoad
Colors::requireTheme
Linux::requireUbuntu
Linux::requireSudoCommand

To take into consideration:

at each pass, we will parse the full list of functions and requires
- it means the array of requires has to be reset at each pass.

Let’s take again our above example, pass by pass (we avoided to include some functions intentionally like Retry:default needed by Linux::Apt::update to make example easier to understand).

Pass #1: import functions Linux::Apt::update and Log::displayError

# @require Linux::requireSudoCommand
# @require Linux::requireUbuntu
Linux::Apt::update() { :; }
# @require Log::requireLoad
Log::displayError() {
  #...
  Log:logMessage #...
}
# FUNCTIONS placeholder
# we don't have any yet as we are still parsing the 3 lines
# code above.
# REQUIRES placeholder
Linux::Apt::update || Log::displayError "impossible to update"

Functions imported list so far:

Linux::Apt::update
Log::displayError

Pass #2: import functions Log:logMessage and import required functions in reverse order Linux::requireSudoCommand, Linux::requireUbuntu, Log::requireLoad Note: remember that require functions are only filtered using # @require

# @require Linux::requireSudoCommand
# @require Linux::requireUbuntu
Linux::Apt::update() { :; }
# @require Log::requireLoad
Log::displayError() {
  #...
  Log:logMessage #...
}
Log:logMessage() { :; }
Linux::requireSudoCommand() { :; }
Linux::requireUbuntu() { :; }
# @require Env::requireLoad
Log::requireLoad() { :; }
# FUNCTIONS placeholder

Log::requireLoad
Linux::requireUbuntu
Linux::requireSudoCommand
# REQUIRES placeholder
Linux::Apt::update || Log::displayError "impossible to update"

Functions imported list so far:

Linux::Apt::update
Log::displayError
Log:logMessage
Log::requireLoad
Linux::requireSudoCommand
Linux::requireUbuntu

Pass #3: import functions, import required functions will import Env::requireLoad so order of requires will be:

Env:requireLoad
Log::requireLoad
Linux::requireUbuntu
Linux::requireSudoCommand

3.5.3. @embed directive (optional)

Allows to embed files, directories or a framework function. The following syntax can be used:

Syntax: # @embed "srcFile" AS "targetFile"

Syntax: # @embed "srcDir" AS "targetDir"

if @embed annotation is provided, the file/dir provided will be added inside the resulting bin file as a tar gz file(base64 encoded) and automatically extracted when executed.

The @embed annotation allows to embed as base64 encoded a file or a directory. annotationEmbed allows to:

include a file(binary or not) as base64 encoded, the file can then be extracted using the automatically generated method Compiler::Embed::extractFile_asName where asName is the name chosen using annotation explained above. The original file mode will be restored after extraction. The variable embed_file_asName contains the targeted filepath.
include a directory, the directory will be tar gz and added to the compiled file as base64 encoded string. The directory can then be extracted using the automatically generated method Compiler::Embed::extractDir_asName where asName is the name chosen using annotation explained above. The variable embed_dir_asName contains the targeted directory path.
include a bash framework function, a special binary file that simply calls this function will be automatically generated. This binary file will be added to the compiled file as base64 encoded string. Then it will be automatically extracted to temporary directory and is callable directly using asName chosen above because path of the temporary directory has been added into the PATH variable.

The syntax is the following:

# @embed "${FRAMEWORK_ROOT_DIR}/README.md" as readme
# @embed "${FRAMEWORK_ROOT_DIR}/.cspell" as cspell

This will generate the code below:

Compiler::Embed::extractFileFromBase64 \
  "${PERSISTENT_TMPDIR:-/tmp}/1e26600f34bdaf348803250aa87f4924/readme" \
  "base64 encode string" \
  "644"

declare -gx embed_file_readme="${PERSISTENT_TMPDIR:-/tmp}/1e26600f34bdaf348803250aa87f4924/readme"

Compiler::Embed::extractDirFromBase64 \
  "${PERSISTENT_TMPDIR:-/tmp}/5c12a039d61ab2c98111e5353362f380/cspell" \
  "base64 encode string"

declare -gx embed_dir_cspell="${PERSISTENT_TMPDIR:-/tmp}/5c12a039d61ab2c98111e5353362f380/cspell"

The embedded files will be automatically uncompressed.

activity diagram to explain how EMBED directives are injected

Source code: Activity diagram

@startuml "compilerEmbedInjection"
title compiler embed injection
skinparam {
  ' https://github.com/plantuml/plantuml/blob/49115dfc7d4156961e5b49a81c09b474daa79823/src/net/sourceforge/plantuml/style/FromSkinparamToStyle.java#L145
  activityDiamondBackgroundColor #AAAAAA
  activityEndColor #red
}
start

:compiler;

#SpringGreen:Compiler::Embed::inject fromFile;

#SpringGreen:Compiler::Embed::filter fromFile;
while (embedDirective?) is (<color:green>embed found)
  -[#green]->
  partition Compiler::Embed::embed #SpringGreen {
    #SpringGreen:Compiler::Embed::parse $embedDirective
      ~~uses Compiler::Embed::assertAsName~~
      ~~uses Compiler::Embed::assertResource~~
    ;
    if (embed directive can be parsed?) is (<color:green>valid directive) then
      -[#green]->
    else (<color:red>invalid embed\n<color:red>directive)
      -[#red]->
      end
    endif
    -[#green]->
  }

  if (embed name already injected?) then (yes)
    :display skip;
  else (<color:green>embed resource can be injected)
    if (embed resources already injected?) then (yes)
      :display warning;
    endif
    partition Compiler::Embed::embed #LightGray {
      #SpringGreen:__Compiler::Embed::embed__ **$resource** **$asName**;
      switch (resource type?)
      case ( resource is a file )
        #SpringGreen:Compiler::Embed::embedFile;
      case ( resource is a directory )
        #SpringGreen:Compiler::Embed::embedDir;
      case ( resource is a bash\nframework function )
        #SpringGreen:Compiler::Embed::embedFrameworkFunction;
        #SpringGreen:bin/compile;
      case ( <color:red>error )
        -[#red]->
        end
      endswitch
    }
    if (embed resource injection failure ?) then
      -[#red]-> <color:red>display error\n<color:red>and return 2;
      end
    else
      -[#green]->
    endif

  endif
  -[#green]-> <color:green>process next embed directive;

endwhile (no more embed directive to process)

:Output result;

stop
@enduml

See compiler - Compiler::Embed::embed below for more information.

4. Best practices

@embed keyword is really useful to inline configuration files. However to run framework function using sudo, it is recommended to call the same binary but passing options to change the behavior. This way the content of the script file does not seem to be obfuscated.

5. Acknowledgements

I want to thank a lot Michał Zieliński(Tratif company) for this wonderful article that helped me a lot in the conception of the file/dir/framework function embedding feature.

for more information see Bash Tips #6 – Embedding Files In A Single Bash Script

Backup page of the above article
